Constructed With Great Precision And Accuracy!
Needles used in medical settings get fabricated with high precision and complexity. Also, these needles pierce into the skin of the patient hence, their manufacturing must get carried out with stainless steel and hazard-free material. Our needle machines lay easy-to-understand manufacturing procedures. Some needles are substantially more sophisticated and consist straight from a die casting. Needle's other metal parts get constructed using die castings or sometimes by other key methods. Allied Way(India) manufactures top-quality needle machines in compliance with standard regulatory bodies of national and international markets. We are the top Needle Machine Manufacturers because of our effective medical solutions used in various applications.
Since 2000,
Operating in India.
Features Of Product
Our manufactured products come with distinctive specifications and with room for higher upgradation and customisations. Given below are our product's specifications and if you need assistance in understanding the configurations, reach out to us!
Call Us Now
+91-8447962638
Mail Us
vivek@alliedwayindia.com
Specifications of Our Product

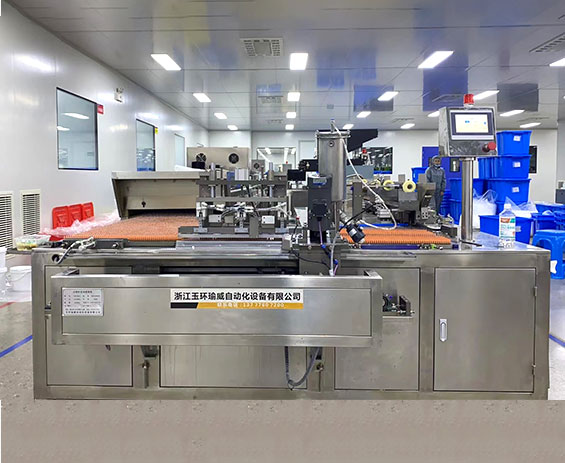

- NEEDLE MACHINE SPECIFICATION
-
Basic specification Applicable range 16G-26G Capacity 68000-70000pcs/hrs M/C dimension 11.5M*3.3M*1.8M M/C weight 3000kgs Electric power 415V(50HZ ) Electric power consumption About 13kw Air pressure > 0.6Mpa Air consumption 1500ML/min Main frame material SS41 Electoless plating (base) Stainless steel (body cover) Part section material SS41 Electoless plating S45C Chrome plating A16061 Chromate Jig 60pin,420pcs Alarm system Tower lamp,Buzzer,Segment, Touch screen massage No. of worker 2 Production Hub supply -Hub press-Electric discharge -cannula assembly -epoxy bonding -Epoxy harderning -silicone coating -point Inspection -blockage needle test-badness Eject -cap assembly -cap press-Product Ejector
A Safe And Simple Solution To Manufacture Medical Needles!
Allied Way (India) is the leading Needle Machine Suppliers In India. We are in the business of supplying medical solutions that boost the well-being and lifestyle options of individuals.
To help both patients and doctors, we use "purpose-driven innovation," which involves a constant search for unfulfilled clinical requirements. Our range is rather extensive, including products utilised in various settings, including medical facilities, clinics, laboratories, and more.
We use nickel plating to protect our needles from rust and corrosion. However, the primary tube body may be constructed from either plastic or glass, or perhaps both, depending on the design of the device.
Effective Solutions
Our products come with premium quality raw materials and advanced features like precision moulding, automation and controls, and much more. By investing in our products, you are going to have a higher ROI. Below are some of the standard features
- NEEDLE MACHINE SPECIFICATION
-
Part Description Hub Assembly unit Shut type
Used Ringblower hub supplyChina (Yuwei) Electric discharge treatment unit 20,000V Cannula loading station Two cannuals loading stations
With three platesCannula assembly unit Lift type,Vacuum type Epoxy Bonding unit Shut type
Used Ringblower hub supplyHub Assembly unit Wheel type
Moving type→Electric actuatorsInspection Blockage,Bending inspection
Camera(Keyence)Point inspection Point,Non-Cannula inspection
Camera(keyence)Ejection of bad needle unit Auto Eject
- NEEDLE MACHINE SPECIFICATION
-
Main parts brand Electric motor STS China Air cylinder SMC Japan Air solenoid valve Jinqi Taiwan Camera processing Keyence Japan PLC Keyence Japan Servo Panasonic Japan Touch Screen(TAIWAN) KINCO Taiwan
